Brand New - Upgraded Design - 2020 Skid Steer Loader - HD RK-5 Only available at MTL Attachments

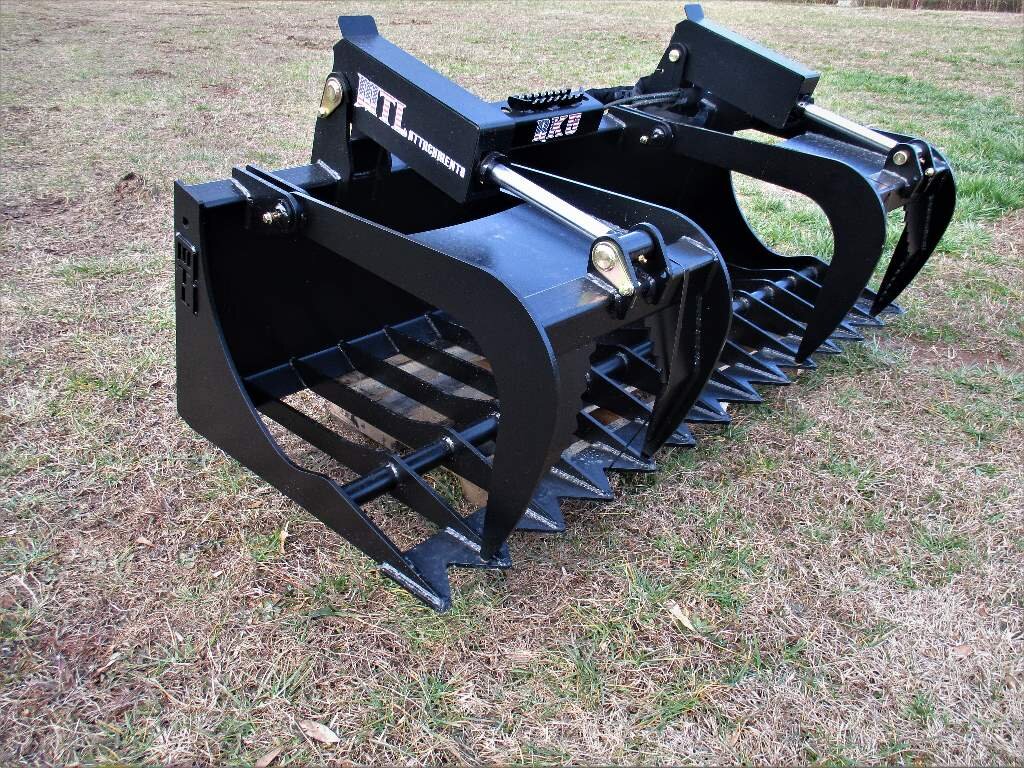

NEW 5" spacing model Built in the USA Twin Cylinder Rock / Root Grapple bucket

Built in the USA, by hard working families living in the USA   Take advantage of our newest grapples out to date, these are very well built Rock or Root Grapple buckets with twin Cylinder upper tongs.

New for our 2020 models -
Wider Opening
Grease fittings on moveable parts
Stronger base
Fully Functional center step
Solid Upper Tongs to protect underside of cylinders
Largest Pin Diameter for cylinders on Market 1.25" pins
Deeper Capacity
New Welded US Stronger Cylinders for more pressure
Stronger Uprights for Cylinder Arm support
Completely protected hose routing
New Upper Gussets on quick attach for added strength
New Stronger Cylinder Covers for 2020
New sizes available - Now available in 60-66-72-78
Comes in 5" Spacing - (RK-5) model our strongest built 600 lb Class
Comes in - NEW 3" spacing - our strongest built in the 700 lb category.

weights as follows
60-RK-5 - 560 lbs     60 RK-X - 608 lbs
66-RK-5 - N/A           66 RK-X - 641 lbs
72-RK-5 - 610 lbs     72 RK-X - 678 lbs
78-RK-5 - N/A           78 RK-X - 716 lbs

• 3/8" Solid steel A50 sides-middles & tops


• High Strength A50 Steel

• Integrated Cutting edge w/ A36 (A50) formed steel teeth

• 3045 PSI lines

• NEW Stronger cylinder Covers Included

• 100% Powder Coated

• Nylon hose protectors included !!

• ½” Flat Face ISO skid Steer type couplers included (Fits 99% of skid steer Models)

• Hydraulic Hoses included

• 36" Tip to Tine opening

• Overall depth Approx 36" / Inside grapple depth of approx 34” and 3" Tine spacing for holding smaller debris.

• NEW 2020 1.25" Pin Welded Xtreme series Twin Hydraulic Cylinders 2" x 10" Stroke

• Completely Protected shield for hydraulic lines

• Skid Steer loader attachment plate

• Weight: see above

• Universal skid steer fitment - Fits 99% of all skid steers manufactured after 1990.

• We rate these as follows - skid steers up to 70 HP (Tire Type under 6,000 lbs)
*  Tractors up to 60 HP (under 5,000 lbs)
– not rated for Track style skid steers – (Track Loaders)

We have many customers that use them on larger machines, we have had Customers use them on a Bobcat track machine T250 , T300 for clean up around the property – we build these with weight in mind the RK-X while built heavier than alot of other grapples on the market are not built as strong as the MTL X-Series Rock Grapple , the MTL X-series Root Grapple or XT Rock / Root Grapple and The X-Series we manufacture for larger stronger machines, including any Track Loader models.

SHIPPING: Is very easy, we have shipped over 10,000 grapples and have a system in place to accommodate most every transaction, we will make contact with you after purchase, to go over all your freight options. If you are unhappy with the options or would rather go a different route, we will refund your complete purchase price immediately-no questions asked- no hassles.

* To ship at the stated price $FREE we will need a direct service commercial or your local freight terminal.

  (meaning if you are rural, on the top of a mountain, camped out in the desert, inaccessible by semi trucks there would be an additional charge or you may cancel the purchase)

* $FREE also includes to your Local freight terminal - you can check your closest terminal at YRC.com or XPO Logistics

* Must be a direct service with YRC freight - (CA, WA, OR, MT, WY, UT, ID may be subject to additional charges)

* Please make sure to provide your correct name, address, and phone number. These are shipped via commercial freight carrier

* Residential Delivery is available for only $40 - (This includes Farms, Home based business, or a business located in residential area etc)

* Residential Delivery is just that - you will still need to unload with your machine (no liftgate service - this is additional fee of $50)

* You must be there to offload - someone must sign for the items being delivered.

* Will ship from Our warehouse in Waco, GA 30182

Pick up is always free

(we will load for you at no charge) and pick up location is about 40 miles west of Atlanta, GA right off I-20
